How PID Controls VRM Operations

TO Download this post and all the books and excel sheets and my personal notes and presentations I collected about cement industry in the last 30 years click the below paypal link

In cement plants, ensuring optimal Vertical Roller Mill (VRM) performance is essential for efficiency and quality. A PID (Proportional-Integral-Derivative) controller plays a crucial role in automating various VRM parameters, improving stability, and reducing manual intervention.

How PID Controls VRM Operations:

✅ Hydraulic System Control
The mill vibration and differential pressure (DP) act as feedback signals.
If vibration increases, PID reduces hydraulic pressure to stabilize the system.
If DP drops, PID increases hydraulic pressure to optimize grinding efficiency.

✅ Inlet Air Volume Control
PID adjusts air volume based on DP, mill rejection, product quality, and hot air generator (HAG) pressure.
Helps maintain the required airflow for material transport and drying.

✅ Water Spray Regulation
PID controls water injection based on mill temperature, material moisture, and vibration levels.
Prevents overheating and ensures consistent material grinding.

✅ ID Fan Speed Control
PID regulates ID fan speed according to mill feed setpoint, product fineness, and DP.
Ensures stable negative pressure inside the mill, reducing process fluctuations.

✅ Feed Rate Adjustment
The raw material feed is controlled based on temperature, rejection rate, and DP.
Avoids overloading while maintaining proper grinding conditions.

✅ HAG Load Regulation
HAG output is automatically controlled based on the required grinding temperature.
Ensures proper drying of material before grinding.

✅ Separator Speed Control
PID adjusts the separator speed according to product fineness, DP, KW consumption, and rejection rate abnormalities.
Optimizes particle size distribution and efficiency.

✅ Clinker Charging Automation
Hopper charging is automated by PID based on hopper percentage setpoint.
Reduces manual errors and ensures a consistent material feed.

PID & DCS: A Powerful Combination

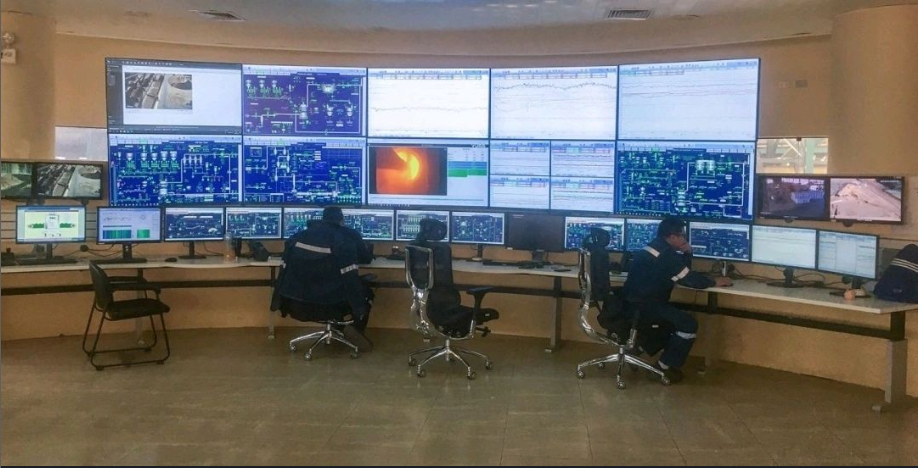

While PID controllers manage individual process parameters, a DCS (Distributed Control System) integrates and monitors the entire VRM operation. DCS contains multiple PIDs working together, providing alarms, data logging, and an operator interface for complete process control.
Analogy:
A PID controller is like an automatic traffic light managing one intersection, while a DCS is a smart city traffic control system optimizing flow across multiple intersections.
By implementing PID-based auto control, cement plants can achieve higher efficiency, stable operations, and better product quality with minimal manual intervention.

This is based on my expertise please if any information is need to add please comment down below.

Thank you
