Key Spare Parts of Cyclone Preheater: A Comprehensive Guide to Understanding and Maintenance

TO Download this post and all the books and excel sheets and my personal notes and presentations I collected about cement industry in the last 30 years click the below paypal link

Cyclone preheaters are vital components in cement plants, enhancing energy efficiency and optimizing the clinker production process. To ensure their performance and longevity, understanding their key spare parts and maintenance needs is crucial. Below, we explore the essential spare parts, their functions, common issues, and maintenance tips.

Cyclone Cylinder Spare Parts

 Cyclone Cylinder Body

• Function: Acts as the primary structure for gas-solid separation and heat exchange, providing the space for material and gas flow separation.
• Common Issues & Maintenance:
  • Wear and Tear: High-temperature gas-borne particles cause erosion, particularly near the inlet and contact zones.
  • Corrosion: In special environments, corrosion can weaken the structure.
  • Action: Replace damaged parts if separation efficiency or structural integrity is compromised. Regular inspections are necessary to prevent downtime.

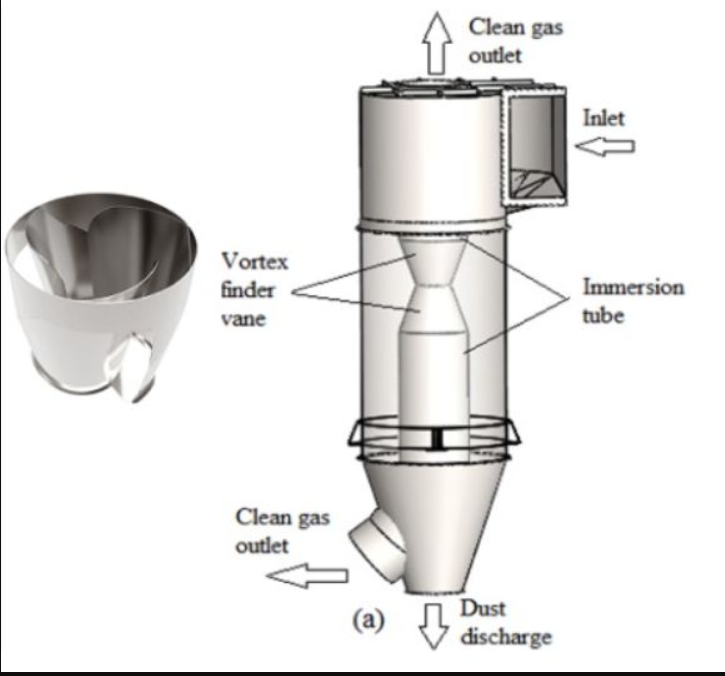

 Inner Cylinder

• Function: Directs separated gas outward, controlling its speed and direction to improve efficiency.
• Common Issues & Maintenance:
  • Serious Wear: Direct contact with gas and materials leads to increased diameter, holes, or other damages.
  • Action: Replace immediately when damage affects separation efficiency.

 Discharge Pipe Spare Parts

Discharge Pipe Body

• Function: Connects cyclone cylinders and facilitates material transportation.
• Common Issues & Maintenance:
  • Erosion: Material flow scours the pipe walls, especially at elbows and bottoms, causing thinning and eventual perforation.
  • Blockages: Accumulation due to material properties can obstruct flow.
  • Action:
    • Inspect regularly for thinning and perforations.
    • Use air cannons to prevent blockages and replace parts as necessary.

 Air Lock Valve Spare Parts

 Air Lock Valve

• Function: Ensures material discharge while preventing gas backflow, enabling effective heat exchange.
• Common Issues & Maintenance:
  • Wear and Leakage: Frequent opening and closing wear down valve plates and seats, leading to gas leaks.
  • Sealing Failures: Rubber seals age over time, compromising performance.
  • Action: Replace valve plates, seats, and seals at regular intervals to maintain efficiency.

 Material Spreading Device Spare Parts

 Material Spreading Device

• Function: Evenly distributes materials within hot gas to maximize heat exchange efficiency.
• Common Issues & Maintenance:
  • Wear on Rotating Parts: Shafts and blades suffer from friction and impact, leading to uneven distribution.
  • Transmission Malfunctions: Gears and other transmission parts can fail without timely maintenance.
  • Action:
    • Regularly inspect and replace worn rotating and transmission parts.
    • Keep spare parts on hand for immediate repair.

Proactive Maintenance Tips for Cyclone Preheater Spare Parts

• Regular Inspections: Frequent checks can identify early signs of wear, tear, or corrosion.
• Scheduled Replacements: Avoid waiting for complete failure; replace parts proactively based on operating conditions.
• Maintain an Inventory: Stock essential spare parts like valve plates, rubber seals, and transmission components to minimize downtime.
• Training and Awareness: Equip your maintenance team with knowledge about the cyclone preheater system for better handling.

Conclusion

By understanding the functions, potential issues, and maintenance needs of cyclone preheater spare parts, cement plant operators can ensure optimal performance and reduce downtime. A well-maintained cyclone preheater not only improves energy efficiency but also enhances overall plant productivity.
