Detailed Article on HOTDISC Technology: A Comprehensive Overview

Introduction to HOTDISC Technology

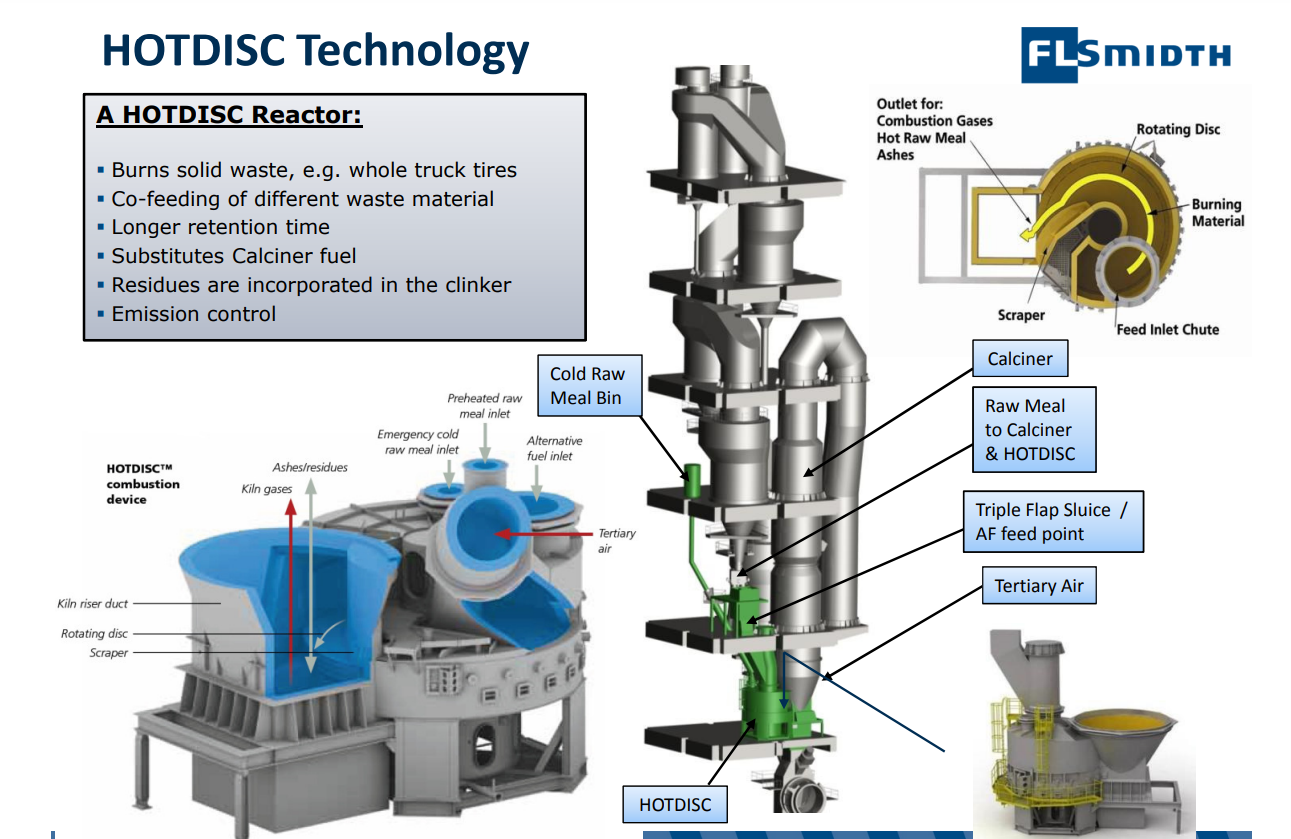

The HOTDISC technology, as depicted in the image, is a revolutionary system developed by FLSmidth to burn various types of waste, including whole truck tires, as an alternative fuel in cement kilns. This system is designed to improve the sustainability and efficiency of cement production by reducing reliance on traditional fuels like coal and gas.

The HOTDISC reactor is specifically designed to handle a wide range of waste materials, providing longer retention times for complete combustion. This ensures that residues from the waste are incorporated into the clinker without affecting the quality of the final product. This process not only substitutes conventional fuels but also contributes significantly to emission control, making it a critical technology in modern cement manufacturing.

Components of the HOTDISC Reactor

1. Cold Raw Meal Bin:

  • This bin stores cold raw materials that are fed into the system. The raw meal is a crucial component in the cement-making process, and its controlled entry ensures optimal burning in the reactor.

2. Calciner:

  • The calciner is a key part of the kiln system, where materials are preheated to high temperatures before entering the kiln. In the HOTDISC system, it plays an integral role by receiving raw meal and alternative fuels, contributing to efficient fuel usage.

3. Raw Meal to Calciner and HOTDISC:

  • Raw meal is directed both to the calciner and the HOTDISC. The integration of alternative fuels like solid waste in this stage ensures that energy consumption is optimized.

4. Triple Flap Sluice / AF (Alternative Fuel) Feed Point:

  • This mechanism allows for the controlled feeding of alternative fuels into the HOTDISC, maintaining operational stability and ensuring that the fuel is evenly distributed.

5. Tertiary Air:

  • Tertiary air is introduced to help with the combustion process, ensuring that the waste burns completely within the reactor, contributing to energy efficiency.

The Working Mechanism of HOTDISC

The HOTDISC combustion device consists of a rotating disc, which ensures continuous feeding and optimal burning of waste materials. Here’s how the system operates step-by-step:

  1. Fuel Inlet:
    • Waste materials, including whole truck tires or other types of solid waste, are fed through the fuel inlet chute.
  2. Rotating Disc:
    • The rotating disc moves the waste material inside the combustion chamber, ensuring even exposure to heat.
  3. Burning Material:
    • As the material burns, the generated heat is transferred to the raw meal in the calciner, aiding the cement production process.
  4. Scraper:
    • The scraper ensures that the burning process is smooth and efficient by removing any clinkers or residues that form during combustion.
  5. Ashes/Residues Handling:
    • Ashes and residues generated from the combustion process are incorporated into the clinker, reducing the waste and contributing to the circular economy model in cement production.

Key Benefits of HOTDISC Technology

  • Substitution of Calciner Fuel: The HOTDISC system allows cement producers to substitute up to 100% of the calciner fuel with alternative waste materials, significantly reducing fuel costs and environmental impact.
  • Longer Retention Time: Waste materials remain longer in the reactor, ensuring complete combustion and minimizing emissions.
  • Waste Management: By using waste such as truck tires and industrial by-products, the HOTDISC reactor helps reduce landfill waste, contributing to environmental sustainability.
  • Emission Control: The advanced emission control system ensures that harmful pollutants are minimized, making the HOTDISC an environmentally friendly solution.

References and Sources

  1. “HOTDISC Technology for Waste Combustion in Cement Plants” – FLSmidth
    Source link: https://www.flsmidth.com/en-gb/products/hotdisc

This article provides a comprehensive view of the HOTDISC reactor, focusing on its components, working mechanism, and benefits to modern cement manufacturing. The technology is not only a solution for energy efficiency but also plays a vital role in environmental protection through waste management and emission control.

By adopting HOTDISC technology, cement plants can not only reduce their carbon footprint but also improve their overall operational efficiency, making it a crucial innovation in the field of sustainable cement production.
